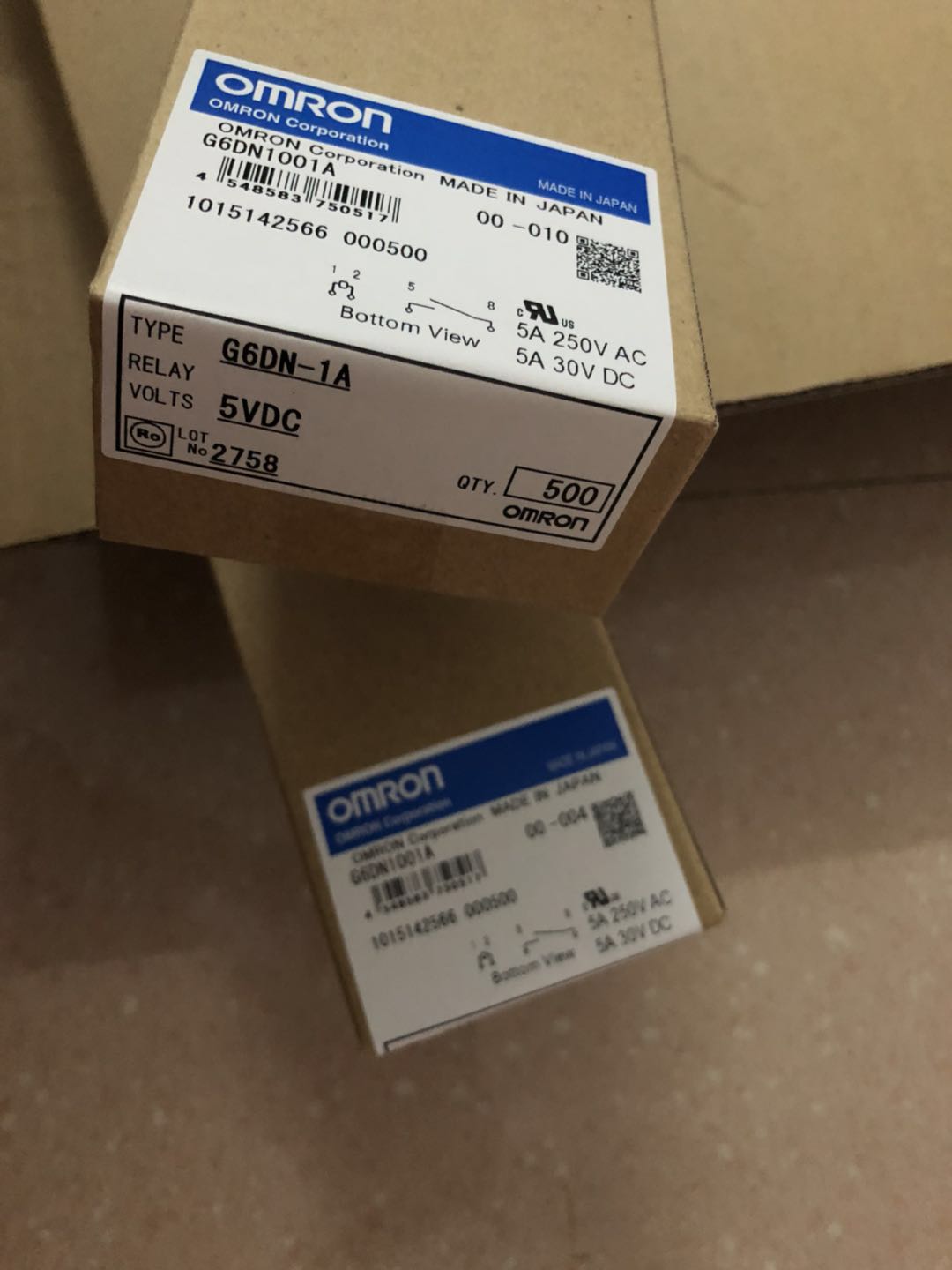

G6DN-1A
G6DN-1A: Electromechanical Relay SPST-NO 5A 5VDC 227Ohm Through Hole - Rail/Tube
Package: DIP
Mfr. Part#: G6DN-1A
Mfr.: OMRON
ROHS PB FREE
Quality: 100% Original
Warranty: 180 days
SPST Slim Power Relay for 5 A switching
Key Features
• Slim 5-mm width and miniature size. (20 × 5.08 × 12.5 mm) • High switching capability 5 A (250 VAC and 30 VDC), and high contact reliability by crossbar-twin contact. • Power consumption 110 mW of an industry top class. • Meets application standards EN61010-1 and EN61010-2-201 for reinforced insulation, and EN60335-1 for basic insulation.
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 22.0mA |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5A |
| Switching Voltage | 277VAC, 125VDC - Max |
| Turn On Voltage (Max) | 3.5 VDC |
| Turn Off Voltage (Min) | 0.25 VDC |
| Operate Time | 10ms |
| Release Time | 5ms |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 90°C |
| Contact Material | Silver Alloy |
| Coil Power | 110 mW |
| Coil Resistance | 227 Ohms |
