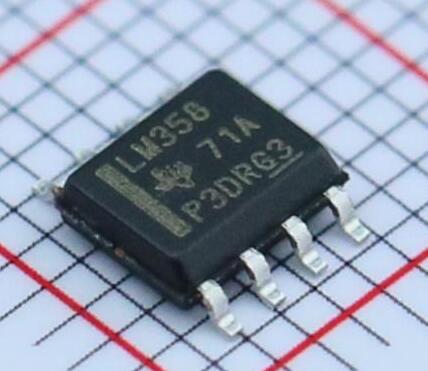

These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

Key Features

• Wide Supply Ranges
  • Single Supply: 3 V to 32 V
    (26 V for LM2904)
  • Dual Supplies: ±1.5 V to ±16 V
    (±13 V for LM2904)
• Low Supply-Current Drain, Independent of Supply
  Voltage: 0.7 mA Typical
• Wide Unity Gain Bandwidth: 0.7 MHz
• Common-Mode Input Voltage Range Includes
  Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters
  • Input Offset Voltage: 3 mV Typical
    A Versions: 2 mV Typical
  • Input Offset Current: 2 nA Typical
  • Input Bias Current: 20 nA Typical
    A Versions: 15 nA Typical
• Differential Input Voltage Range Equal to
  Maximum-Rated Supply Voltage: 32 V
  (26 V for LM2904)
• Open-Loop Differential Voltage Gain:
  100 dB Typical
• Internal Frequency Compensation
